Uncertainty quantification with PnP-ULA.

This code shows you how to use sampling algorithms to quantify uncertainty of a reconstruction from incomplete and noisy measurements.

ULA obtains samples by running the following iteration:

\[x_{k+1} = x_k + \alpha \eta \nabla \log p_{\sigma}(x_k) + \eta \nabla \log p(y|x_k) + \sqrt{2 \eta} z_k\]

where \(z_k \sim \mathcal{N}(0, I)\) is a Gaussian random variable, \(\eta\) is the step size and \(\alpha\) is a parameter controlling the regularization.

The PnP-ULA method is described in the paper Laumont et al.[1].

import deepinv as dinv
from deepinv.utils.plotting import plot
import torch
from deepinv.utils import load_example

Load image from the internet

This example uses an image of Messi.

device = dinv.utils.get_device()

x = load_example("messi.jpg", img_size=32).to(device)

Selected GPU 0 with 18645.4375 MiB free memory

Define forward operator and noise model

This example uses inpainting as the forward operator and Gaussian noise as the noise model.

sigma = 0.1  # noise level
physics = dinv.physics.Inpainting(mask=0.5, img_size=x.shape[1:], device=device)
physics.noise_model = dinv.physics.GaussianNoise(sigma=sigma)

# Set the global random seed from pytorch to ensure reproducibility of the example.
torch.manual_seed(0)

<torch._C.Generator object at 0x7fdd6c8e33b0>

Define the likelihood

Since the noise model is Gaussian, the negative log-likelihood is the L2 loss.

\[-\log p(y|x) \propto \frac{1}{2\sigma^2} \|y-Ax\|^2\]

# load Gaussian Likelihood
likelihood = dinv.optim.data_fidelity.L2(sigma=sigma)

Define the prior

The score a distribution can be approximated using Tweedie’s formula via the deepinv.optim.ScorePrior class.

\[\nabla \log p_{\sigma}(x) \approx \frac{1}{\sigma^2} \left(D(x,\sigma)-x\right)\]

This example uses a pretrained DnCNN model. From a Bayesian point of view, the score plays the role of the gradient of the negative log prior The hyperparameter sigma_denoiser (\(sigma\)) controls the strength of the prior.

In this example, we use a pretrained DnCNN model using the deepinv.loss.FNEJacobianSpectralNorm loss, which makes sure that the denoiser is firmly non-expansive (see Terris et al.[2]), and helps to stabilize the sampling algorithm.

sigma_denoiser = 2 / 255
prior = dinv.optim.ScorePrior(
    denoiser=dinv.models.DnCNN(pretrained="download_lipschitz")
).to(device)

Create the MCMC sampler

Here we use the Unadjusted Langevin Algorithm (ULA) to sample from the posterior defined in deepinv.sampling.ULAIterator. The hyperparameter step_size controls the step size of the MCMC sampler, regularization controls the strength of the prior and iterations controls the number of iterations of the sampler.

regularization = 0.9
step_size = 0.01 * (sigma**2)
iterations = int(5e3) if torch.cuda.is_available() else 10
params = {
    "step_size": step_size,
    "alpha": regularization,
    "sigma": sigma_denoiser,
}
f = dinv.sampling.sampling_builder(
    "ULA",
    prior=prior,
    data_fidelity=likelihood,
    max_iter=iterations,
    params_algo=params,
    thinning=1,
    verbose=True,
)

Generate the measurement

We apply the forward model to generate the noisy measurement.

y = physics(x)

Run sampling algorithm and plot results

The sampling algorithm returns the posterior mean and variance. We compare the posterior mean with a simple linear reconstruction.

mean, var = f.sample(y, physics)

# compute linear inverse
x_lin = physics.A_adjoint(y)

# compute PSNR
print(f"Linear reconstruction PSNR: {dinv.metric.PSNR()(x, x_lin).item():.2f} dB")
print(f"Posterior mean PSNR: {dinv.metric.PSNR()(x, mean).item():.2f} dB")

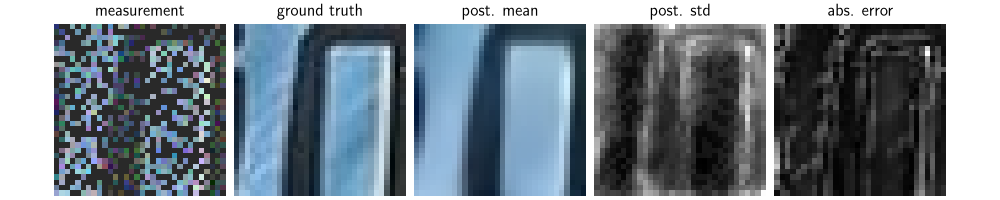

# plot results
error = (mean - x).abs().sum(dim=1).unsqueeze(1)  # per pixel average abs. error
std = var.sum(dim=1).unsqueeze(1).sqrt()  # per pixel average standard dev.
imgs = [x_lin, x, mean, std / std.flatten().max(), error / error.flatten().max()]
plot(
    imgs,
    titles=["measurement", "ground truth", "post. mean", "post. std", "abs. error"],
)
