Positron emission tomography (PET) in 3D

This demo shows how to define a non time-of-flight PET scanner, simulate measurements and reconstruct a volume from them.

The (unnormalized) PET forward model is defined as

\[y \sim \gamma \mathcal{P}(c \circ H(g*x) + b)\]

where \(H \in \mathbb{R}_{+}^{m \times n}\) is the projection operator, \(g \in \mathbb{R}_{+}^{n}\) is a Gaussian blur kernel, \(x\in\mathbb{R}_{+}^{n}\) is the emission image, \(b \in \mathbb{R}_{+}^{m}\) is the (expected) background, \(\mathcal{P}\) denotes Poisson noise, \(c=\exp(-H\mu)\in \mathbb{R}_{+}^{m}\) is an (optional) attenuation term with \(\mu \in \mathbb{R}_{+}^{n}\) an attenuation map (typically obtained through an auxiliary CT scan).

Note

In this example, we consider the unnormalized case, which allows to obtain quantitative reconstructions (i.e., \(x\) has real physical units). The operator also can be used in a normalized setting (forcing \(\|A\|_2=1\) and normalizing counts to be between 0 and 1). See also the normalized 2D PET example. When using deep learning-based reconstruction methods, it is often easier to consider the normalized case, but a special attention is required to denormalize the reconstructions and obtain physical units.

Tip

If you prefer to get started with PET on a simpler 2D problem, please check out the 2D PET demo.

Note

This operator requires the parallelproj package to be installed. This in turn requires installing deepinv via pixi or conda, but not pypi/uv (as parallelproj is not currently available on pypi).

If you are working on a conda environment, you can install parallelproj as

conda install -c conda-forge parallelproj

If you are working on a pixi installation, simply do

pixi install -e full

which installs all optional dependencies.

Check the parallelproj documentation for more details: https://parallelproj.readthedocs.io/en/stable/.

import deepinv as dinv
from deepinv.physics import PET
from deepinv.utils.phantoms import generate_pet_phantom
import torch
import parallelproj
from array_api_compat import torch as torch_compat

      -  -  -  -  -  -  -  -   -  -  -  -
      P  A  R  A  L  L  E  L | P  R  O  J
      -  -  -  -  -  -  -  -   -  -  -  -

=================================================

     Please consider citing our publication
  ---------------------------------------------
  Georg Schramm and Kris Thielemans:
  "PARALLELPROJ—an open-source framework for
   fast calculation of projections in
   tomography"
  Front. Nucl. Med., 08 January 2024
  Sec. PET and SPECT, Vol 3
  https://doi.org/10.3389/fnume.2023.1324562

=================================================

parallelproj C    lib         ..: /local/jtachell/deepinv/deepinv/.pixi/envs/docs/lib/libparallelproj_c.so.1.10.2
parallelproj CUDA lib         ..: /local/jtachell/deepinv/deepinv/.pixi/envs/docs/lib/libparallelproj_cuda.so.1.10.2
parallelproj CUDA kernel file ..: /local/jtachell/deepinv/deepinv/.pixi/envs/docs/lib/projector_kernels.cu.1.10.2
parallelproj CUDA present     ..: True
parallelproj cupy enabled     ..: True

Setup a minimal non-TOF PET projector

Here we define each voxel to have size \(3\times 3\times 3\) mm such that the total volume to reconstruct is of size \(38.4\times 38.4\times 7.2\) cm which fits approximately a portion of a human chest.

The maximum achievable resolution (in high count settings) is typically proportional to the full-width at half maximum (FWHM) of the Gaussian blur kernel, which here is set to 4 mm.

We use a PET scanner with 8 rings of detectors, each ring being a polygon of 32 sides, and each side containing 16 detectors. This gives us a total of 32*16=512 detectors per ring.

Tip

You can play with different geometries and voxel sizes to get a good grasp of the scanner geometry.

device = "cuda" if torch.cuda.is_available() else "cpu"
img_size = (128, 128, 24)
voxel_size = (3, 3, 3)

# number of sides of the polygon approximating a circle
num_sides = 32

# number of detectors per polygon side
num_lor_endpoints_per_side = 16

# number of rings of detectors on the depth axes
num_rings = 8

scanner = parallelproj.pet_scanners.DemoPETScannerGeometry(
    torch_compat,
    dev=device,
    num_rings=num_rings,
    num_sides=num_sides,
    num_lor_endpoints_per_side=num_lor_endpoints_per_side,
)

# FWHM of the Gaussian blur kernel in mm
fwhm_data_mm = 4


physics = PET(
    device=device,
    voxel_size=voxel_size,
    scanner=scanner,
    fwhm_data_mm=fwhm_data_mm,
    img_size=img_size,
    normalize_counts=False,
    normalize=False,
)

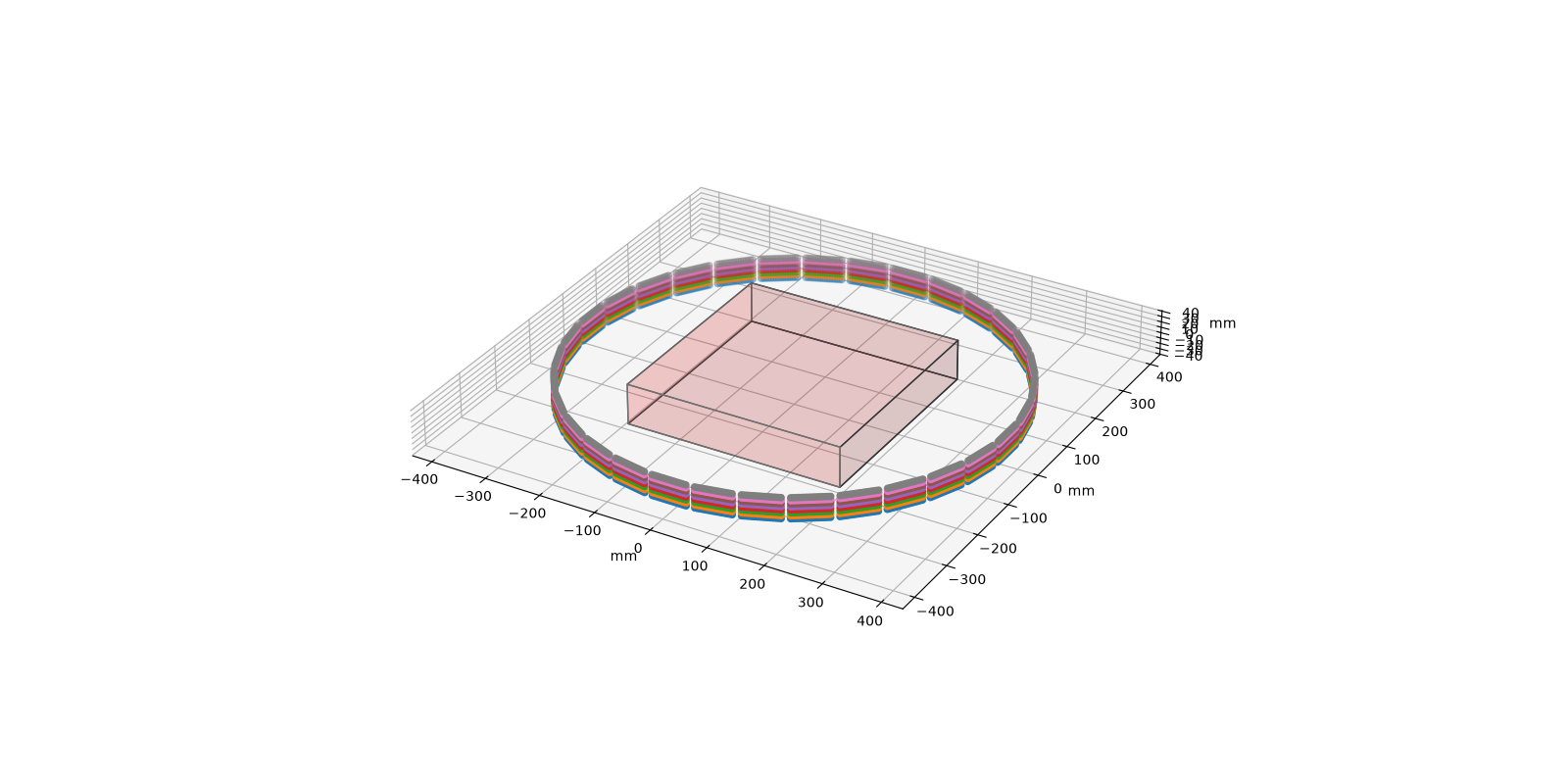

physics.plot_geometry()

Define a phantom and attenuation map

We define a 3D phantom and attenuation map, whose shape is the same as the phantom.

In practice, the attenuation is typically obtained with an auxiliary CT scan of the patient.

x, attenuation = generate_pet_phantom(img_size, device=device)
mid_slice = img_size[-1] // 2

# gain of the device.
# higher gains are associated to lower dose and/or shorter acquisition times,
# while lower gains are associated to higher dose and/or longer acquisition times.
# larger gain -> more poisson noise -> harder reconstruction
acquisition_time_factor = 10.0
x = x * acquisition_time_factor

dinv.utils.plot(
    [x[..., mid_slice], attenuation[..., mid_slice]],
    titles=["Emission image", "Attenuation image"],
)

Simulating measurements

The shape of measurements is approximately (B, 1, N, N/2, R^2) where N=num_lor_endpoints_per_side*num_sides is the number of detectors per ring and R is the number of rings. This provides one measurement for every possible Line of Response (LOR), or in other words ‘rays’, connecting two detectors in the scanner, which are arranged in a sinogram format, with the first axis corresponding to the angle of the ray, the second axis corresponding to the distance of the ray to the center of the field of view and the last axis corresponding to the depth of the ray (i.e., which rings of detectors are connected by the ray)

Tip

The size of measurements is independent of the chosen img_size

y = physics(x)

print(
    f"Measurements shape={tuple(y.shape)}, range=({y.min().item():.2f},{y.max().item():.2f})"
)

Measurements shape=(1, 1, 507, 256, 64), range=(0.00,3663.00)

Setting up background and attenuation

The attenuation term reduces the amount of signal measured in rays that go through highly attenuating regions, such as bones. This makes the reconstruction more challenging, but also more realistic.

In PET, we generally have access to a realization of the background, i.e., \(\tilde{s} \sim \mathcal{P}(s)\), which is a Poisson random variable with mean \(s\).

Both attenuation and background are stored as “physics parameters” which are patient dependent and can be updated via physics.update(...) or by passing them as kwargs in physics(x, ...), physics.A(x, ...) or physics.A_adjoint(y, ...).

Note

The attenuation is stored in the physics in sinogram space as \(\exp(-\mu)\) to speed up computations, but it can be provided either in image space, i.e., \(\mu\), to the physics, or in sinogram space, i.e., \(\exp(-\mu)\). The class figures out the attenuation space by comparing it to img_size.

expected_background = torch.ones_like(y) * x.max() * 0.05
background = physics.generate_background(expected_background)
physics.update(attenuation=attenuation, background=background)
y = physics(x)
y2 = y - background

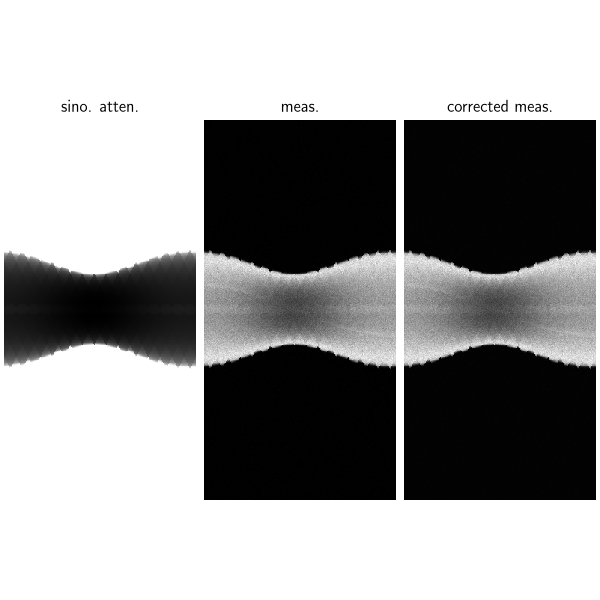

dinv.utils.plot(
    [physics.attenuation[..., mid_slice], y[..., mid_slice], y2[..., mid_slice]],
    ["sino. atten.", "meas.", "corrected meas."],
    figsize=(6, 6),
)

Backprojection and sensitivities

We backproject the data to visualize the sensitivity map of the scanner. The sensitivity map is defined as the back-projection of a sinogram of ones \(s = A^\top \mathbf{1}\), which corresponds to the number of rays intersecting each voxel.

Here we also obtain a simple linear least-squares reconstruction by using A_dagger.

with torch.no_grad():
    x_dag = physics.A_dagger(y - background)
    sensitivities = physics.A_adjoint(torch.ones_like(y))

print(f"Norm operator: {physics.compute_norm(x):.2f}")

dinv.utils.plot(sensitivities[..., mid_slice], ["sensitivities"])

/local/jtachell/deepinv/deepinv/deepinv/physics/functional/matrix.py:42: UserWarning: Power iteration: convergence not reached
  warnings.warn("Power iteration: convergence not reached")
Norm operator: 784477.94

MLEM reconstruction

We run the standard MLEM reconstruction algorithm to obtain a reconstructed emission volume.

The algorithm can be seen as a preconditioned gradient descent on the negative log-likelihood of the Poisson model:

\[x^{(k+1)} = x^{(k)} - P \nabla f(Ax^{(k)}+b,y)\]

where \(f\) is the Poisson data-fidelity term, \(P=\mathrm{diag}(\frac{x}{A^T\mathbf{1}})\) is a preconditioner and \(b\) is the background.

We compare MLEM with the least-squares reconstruction.

data_fidelity = dinv.optim.PoissonLikelihood(
    bkg=background,
    denormalize=False,
)

x_mlem = torch.ones_like(x)
with torch.no_grad():
    for i in range(50):
        grad = data_fidelity.grad(x=x_mlem, y=y, physics=physics)
        preconditioner = (x_mlem + 1e-9) / (sensitivities + 1e-9)
        x_mlem = x_mlem - preconditioner * grad
        x_mlem = torch.clamp(x_mlem, min=0.0)

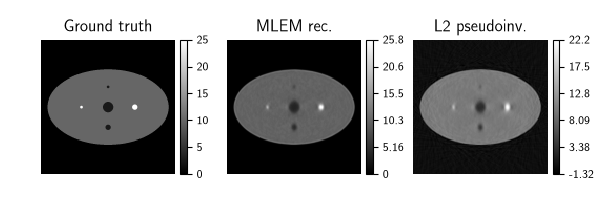

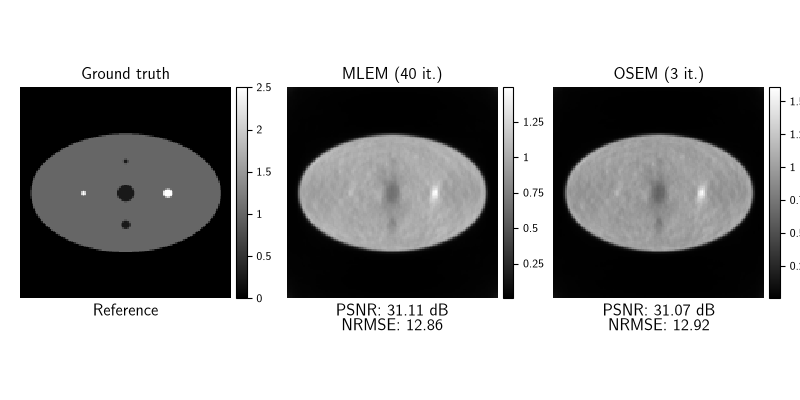

dinv.utils.plot(
    [x[..., mid_slice], x_mlem[..., mid_slice], x_dag[..., mid_slice]],
    ["Ground truth", "MLEM rec.", "L2 pseudoinv."],
    cbar=True,
)

/local/jtachell/deepinv/deepinv/deepinv/utils/plotting.py:470: UserWarning: set_ticklabels() should only be used with a fixed number of ticks, i.e. after set_ticks() or using a FixedLocator. Otherwise, ticks may be mislabeled.
  colbar.set_ticklabels(true_labels)
/local/jtachell/deepinv/deepinv/deepinv/utils/plotting.py:470: UserWarning: set_ticklabels() should only be used with a fixed number of ticks, i.e. after set_ticks() or using a FixedLocator. Otherwise, ticks may be mislabeled.
  colbar.set_ticklabels(true_labels)
/local/jtachell/deepinv/deepinv/deepinv/utils/plotting.py:470: UserWarning: set_ticklabels() should only be used with a fixed number of ticks, i.e. after set_ticks() or using a FixedLocator. Otherwise, ticks may be mislabeled.
  colbar.set_ticklabels(true_labels)
/local/jtachell/deepinv/deepinv/deepinv/utils/plotting.py:488: UserWarning: This figure was using a layout engine that is incompatible with subplots_adjust and/or tight_layout; not calling subplots_adjust.
  plt.subplots_adjust(hspace=0.2, wspace=0.2)

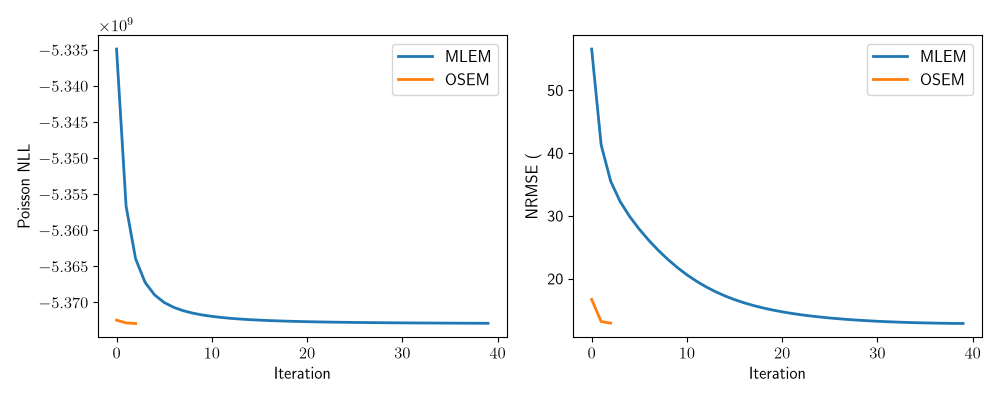

What next?

Now that you master the basics of PET, you can go further by

• Reconstructing PET with learning-based methods (PnP, diffusion, unrolled, etc.)

• Playing with the scanner setup: changing number of detectors, voxel size, etc.
