Low-intensity STED fluorescence microscopy denoising

This example shows how to denoise low-intensity STED fluorescence microscopy images of live-cell mitochondria using the pretrained foundation model deepinv.models.RAM. We load real Abberior STED microscopy data from Osuna-Vargas et al.[1], process it in batches, and visualize the results both with deepinv.utils.plot() and with the interactive 3D viewer deepinv.utils.plot_napari().

Acquiring fluorescence microscopy images at low excitation laser power reduces photobleaching and phototoxicity, which lets biologists image living samples for longer, but it produces noisier images. Here we recover clean images from acquisitions taken at 1.5 microwatt excitation, using images taken at 8 microwatt as the ground truth.

This example requires tifffile, rarfile and napari. Install them with pip install tifffile rarfile "napari[all]".

import deepinv as dinv
import torch

device = dinv.utils.get_device()

Selected GPU 0 with 11218.4375 MiB free memory

Download the dataset

We download the live-cell mitochondria STED dataset from Zenodo. The dataset includes the low-intensity acquisitions (1.5 microwatt) as well as a reference high-intensity (8 microwatt) ground truth, which we use for visualisation.

data_dir = dinv.utils.get_cache_home() / "datasets" / "sted"
archive_name = "live_cell_mitochondria_u2os_tom20_halotag7_dm_sir"

dinv.datasets.download_archive(
    f"https://zenodo.org/records/14215838/files/{archive_name}.rar?download=1",
    data_dir / f"{archive_name}.rar",
    extract=True,
)

File already downloaded: /local/jtachell/.cache/deepinv/datasets/sted/live_cell_mitochondria_u2os_tom20_halotag7_dm_sir.rar. Skipping...

Build the dataset

We use deepinv.datasets.ImageFolder to pair the ground truth and low-intensity images. TIFF files are loaded with deepinv.utils.load_tiff().

dataset = dinv.datasets.ImageFolder(
    data_dir / archive_name / "test_and_training_data_1",
    x_path="ground_truth_images/*.tif",
    y_path="low_intensity_images/*.tif",
    loader=lambda f: dinv.utils.load_tiff(f).squeeze(0).float(),
)

Denoise with the RAM foundation model

deepinv.models.RAM is a pretrained foundation model for image restoration. We process the data in batches. The gain argument sets the Poisson noise level used by the model.

model = dinv.models.RAM(device=device)

for x, y in torch.utils.data.DataLoader(
    dataset, batch_size=1
):  # adjust batch size as necessary
    x, y = x.to(device), y.to(device)
    with torch.no_grad():
        rescale = y.max()
        x_net = model(y / rescale, gain=0.15) * rescale

    break  # remove this to process the whole dataset

Visualize the results

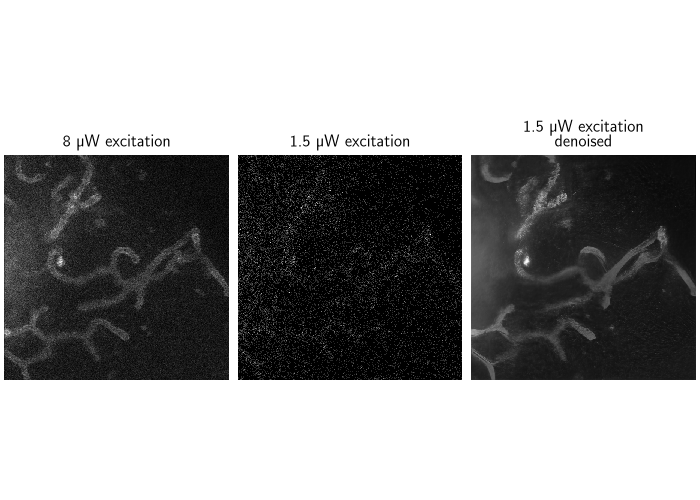

We compare the ground truth, the noisy low-intensity measurement, and the denoised reconstruction.

dinv.utils.plot(
    {
        "8 µW excitation": x,
        "1.5 µW excitation": y,
        "1.5 µW excitation\ndenoised": x_net,
    },
    figsize=(7, 5),
)

Interactive viewer with napari

Use deepinv.utils.plot_napari() to interactively visualise microscopy images/stacks/volumes with the napari viewer.

Since it opens an interactive window, it requires a display and is not executed in this gallery. To reproduce the screenshot below, run:

dinv.utils.plot_napari(x, y, x_net, screenshot=False)

Pass screenshot=True to take a static screenshot instead:

References:

[1]

Pamela Osuna-Vargas, Maren H. Wehrheim, Lucas Zinz, Johanna Rahm, Ashwin Balakrishnan, Alexandra Kaminer, Mike Heilemann, and Matthias Kaschube. Denoising diffusion models for high-resolution microscopy image restoration. In Proceedings of the IEEE/CVF Winter Conference on Applications of Computer Vision (WACV). 2025.
